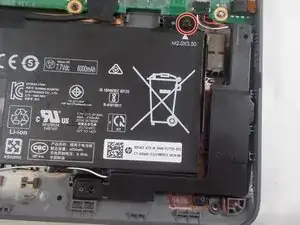

Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The HP Chromebook x360 11 ae010nr (Series: #2MW49UA#ABA, and Model Number: 11 ae010nr), released in September 2017, is one of the many Chromebooks produced by HP.
The device comes in a durable hard plastic exterior with a smokey gray finish. It weighs around 3.11 Lb with dimensions of 12.04 x 8.18 x 0.76 in.
The screen is protected by durable Corning® Gorilla® Glass and can be rotated down into tablet mode which allows for a more effective use of the touch screen. A stylus can also be connected to the device and used in unison with the touch screen.
A 45 W AC power adapter is included with the device, providing quick charging of the 2-cell, 47.36 W lithium-ion battery. The device has a battery life of up to 11 hours and 30 minutes.
Prices for the device, though they vary by distributor, are usually in the $300 range.
Identification
On the bottom of your Chromebook, there should be a label that displays the model and serial numbers of your device.
Specifications
Operating system - Chrome OS™
Processor - Intel® Celeron® N3350 (1.1 GHz base frequency, up to 2.4 GHz burst frequency, 2 MB cache, 2 cores)
Graphics - Integrated: Intel® HD Graphics 500
Display - 11.6" diagonal HD IPS Corning® Gorilla® Glass NBT™ WLED-backlit touch screen (1366 x 768)[12]
Memory - 4 GB LPDDR4-2400 SDRAM (onboard)
Storage - 16 GB eMMC[13]
Wireless technology - Intel® 802.11b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo[10,11]
Power supply - 45 W AC power adapter
Battery - 2-cell, 47.36 Wh Li-ion
Battery life - Up to 11 hours and 30 minutes[7]
External I/O Ports - 2 USB 3.1 Type-C™ Gen 1 (Data Transfer up to 5 Gb/s, DP1.2, HP Sleep and Charge); 2 USB 3.1 Gen 1 (Data transfer only); 1 headphone/microphone combo[9]
Expansion slots- 1 microSD media card reader
Energy efficiency - ENERGY STAR® certified; EPEAT® Silver registered
Webcam - HP TrueVision HD Camera with integrated dual array digital microphone
Audio - Stereo speakers
Color - Smoke gray
Dimensions (W X D X H) - 12.04 x 8.18 x 0.76 in
Weight - 3.11 lb
Software included - CyberLink Power Media Player
Security management - Kensington Mini Security Slot
