How To Replace Custom-cut Adhesive For Samsung Phones

Written By: Arthur Shi

Comments: 26

How To Replace Custom-cut Adhesive For Samsung Phones

Difficulty

Moderate

Steps

Time Required

10 - 30 minutes

Introduction

Not sure what to do with all the adhesive strips in your fix kit? You’ve come to the right place! This guide shows how to use the adhesives in your kit for Samsung phones with glass backs (S7 and newer). It also includes instructions on how to transfer and install various back cover components, such as the rear bezel and fingerprint sensor.

You may not need to use all the adhesive strips included in the kit. If you are transferring the fingerprint sensor, you may need some double-sided tape such as Tesa tape.

For a list of adhesive strips for the Galaxy S phone, [[ invalid parts link ]].

When applying adhesive strips like these, here are some general tips:

Generally, adhesives strips have a colored side and a non-colored (paper or clear plastic) side. The non-colored side determines which surface the strip should be applied to first.
To make adhesive application easier, you can align an unexposed strip to its intended position on the phone, then tape one edge down to hold the strip in place. This will allow you to peel away the plastic liners and expose the adhesive without losing alignment.

Tools

Parts

Tesa 61395 Tape

Step 1

Depending on your phone model, you may not need to complete certain sections of this guide. Check your adhesive kit to see what needs to be done:
To install the battery adhesive, follow this guide.
To transfer and install the fingerprint sensor and gasket, start with the next step.
To transfer and install the rear bezel, skip to step 5.
To install the back cover support adhesive, skip to step 9.
To install the back cover perimeter adhesive, skip to step 13.

Step 2

The following three steps show how to remove and transfer the fingerprint sensor and its gasket.
If your phone's fingerprint sensor and camera reside on a single rear bezel (like on the S9), you can transfer that bezel without removing the parts individually.
Heat an iOpener and apply it to the fingerprint sensor for one minute.

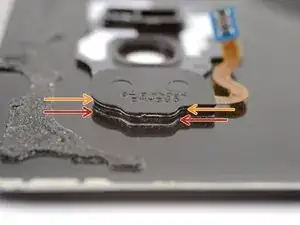

Use an opening tool to gently pry the fingerprint sensor at the lower seam, where it contacts the back cover.
Do not pry at the upper seam, which is the fingerprint gasket seam.

Step 3

If you're only replacing the fingerprint sensor and not the fingerprint sensor gasket, skip this step.
Use an opening tool to pry the fingerprint sensor off of the gasket.
Remove the colored plastic liner on the replacement gasket to expose the adhesive.
Carefully align and lay the fingerprint sensor onto the sticky side of the gasket.
Once aligned, press down firmly with your finger to bond the adhesive.

Step 4

To affix the fingerprint sensor to the new back cover, use a custom cut adhesive, or line the perimeter of the sensor with double-sided tape such as Tesa tape.
Align the fingerprint sensor in the back cover cutout and press down firmly with your finger to bond the adhesive.

Aligning the fingerprint sensor needs to be in the battery replacement and old back cover installation section

Marco Hoy - 13/07/22

Step 5

The following four steps show how to remove and transfer the rear bezel. The bezel supports the rear cameras, flash, and the fingerprint sensor (on some models).
Heat an iOpener and apply it to the rear bezel for a minute.
Starting from the outward-facing side of the back cover, push the bezel inwards with a finger to loosen the bezel from its cutout.
Do not push too hard, or you may bend the bezel.
Alternatively, you can pry around the bezel with an opening tool to loosen it from the back cover.

Step 6

Remove the bezel.
Use an opening tool and some high concentration isopropyl alcohol to remove any remaining adhesive residue on the bezel.

Step 7

Peel away the clear plastic liner from the bezel adhesive strip to expose the adhesive.
Carefully align the adhesive to the back cover's cutout.
Once aligned, press the adhesive in place with your finger.
Peel away the colored plastic liner from the adhesive to expose its surface.

Step 8

Carefully align and set the bezel over the adhesive.
Squeeze the bezel perimeter with your fingers to set the adhesive.
Clean the bezel glass with a microfiber cloth.

Step 9

The following four steps show how to install the back cover support adhesive(s).
If you're replacing the fingerprint sensor or the rear bezel, be sure to complete those tasks first.
Figure out how the support strip aligns with the surfaces by matching the adhesive strip's contours with the adhesive residue and the phone frame.
Generally speaking, the adhesive side that's covered by a clear plastic liner should affix to the back cover, while the side that's covered by a colored liner should affix to the phone frame.
Use an opening tool and high concentration isopropyl alcohol to remove all adhesive residue from the phone frame.
If you're re-using the back cover, remove all adhesive residue from the back cover.
Do not use metal tools as they will scratch the back cover's coating.

For my Galaxy S7, it appeared to me there were some minor placement inconsistencies (a millimeter or two) where the Back Cover Support adhesive pads (support strips) were on the backing sheet versus the actual phone. Difficult to know for sure since it is hard to tell where the original pads were after the back cover is pried off. I removed the clear backing to expose the strips and blocks, but placed the clear backing covering 80% of the phone as I transferred one portion of the unconnected adhesive strips at a time where they best appeared to be needed. This falls in the category of tweaking.

The adhesive sheet for the back cover was 100% accurate.

William Toperzer - 14/12/20

Apply heat with iOpener/blower or the isopropyl alcohol on the adhesive you want to remove.

I did not and noticed I peeled off pieces of the paint coating from the cover glass together with the adhesive.

Eduard - 25/03/21

Step 10

Peel the clear liner off of the support adhesive strip to expose the adhesive.
Carefully lay the strip sticky side up on top of the phone frame, being careful not to touch the sticky surface.
Align the adhesive strip on the phone frame so that the adhesive contours matches the frame's.
If you have two small support strips, repeat the process for both strips.

This process of putting the colored plastic with adhesive onto the phone and then sandwiching the back panel on top seemed counter-intuitive so I decided to remove the colored plastic and place the adhesive + clear plastic onto the back of the phone’s guts.

DON’T BE ME!

Follow the instructions and save yourself close to an hour of hassle. The adhesive loves the colored plastic way more than the clear.

Paul Grzelak - 17/04/21

It actually worked!!!

Jerry Bodenhamer -

Step 11

Carefully lower the back cover onto the exposed support strips. This ensures that the adhesive is transferred onto the back cover in its proper position.

I found it easier to lower the back cover onto the support strips using a suction cup. I felt like this gave me more control over placement and my fingers didn't get in the way on the edges.

Kevin Mosier -

Step 12

Remove the back cover.
Use fingers to press the support adhesive firmly onto the back cover.
Peel away the colored liner to expose the adhesive.

Step 13

The remaining steps show how to install the back cover perimeter adhesive.
Use an opening tool and high concentration isopropyl alcohol to remove all adhesive residue from the phone frame.
If you're re-using the back cover, remove all adhesive residue from the back cover.
Do not use metal tools as they will scratch the back cover's coating.

Be careful with removing adhesive around the NFC Antenna/Charging Coil Assembly. It’s covered in a black wrapping that can look like adhesive. Don’t scratch too hard with the spudger, the wrapping will come off!

Michael M - 26/02/21

Scrape and peel the adhesive, using goo gone only after systematically scraping the adhesive as much as possible. The goo gone should only be used to clean up residue once manual scraping has been completed, otherwise the adhesive will become tacky and only scrape off in microscopic layers at a time, which takes forever to remove.

johnsgoepel -

Step 14

The adhesive is very sticky—you normally have one chance to apply it properly, so be careful as you handle the adhesive.
Peel away the clear liner from the perimeter adhesive strip to expose the adhesive.
Hold the strip by its tabs and carefully line up a long edge of the adhesive to the edge of the back cover.
Set the adhesive onto the back cover and press it onto the cover with your fingers.
Peel away the colored liner from the perimeter adhesive strip to expose the adhesive.
Make sure the adhesive doesn't peek over the cover edge, or it won't properly seal the device.
At this point, the back cover is prepped for sealing. Be sure to test your phone's functionality before sealing the phone.

(Galaxy S7 kit): I peeled away the clear liner (Step 1), aligned it to the cover edge (Step 2) and pressed it down (Step 3).

When I peeled off the tabbed "coloured" liner (Step 4), it turned out to be two layers: a clear, tabbed one that came away and a green one consisting of a central part and a thin, outer strip that still covered the adhesive.

This thin strip had been partially lifted by the removal of the clear tabbed layer, so I started to remove it all. As I slowly and carefully pulled it, it tried to lift the adhesive strip itself off the cover so I held that down with the tweezer points. That still left the main green part in the centre of the case, but that was easily removed.

However, when I turned the back cover over I saw that where the adhesive strip had lifted slightly it had detached some of the cover's coloured film, leaving it buckled and a bit of a mess.

Alan Olrog -

When I tried to pull away the cover strip, the adhesive stuck to it. I also have no idea why the clear liner and green liner are attached to each other.

Sam Ferguson -

The pictures don’t match what is received for the Galaxy S8+. It’s also not clear where to attach the perimeter adhesive. On the lip of the back cover or just inside the well area. In addition, after exposing the adhesive (after removing the clear side), no matter how weel you pre-align the position, you can’t count on the adhesive to stick to whichever method questioned above, without some of it not releasing cleanly from the colored backing. Yes. firm pressure was applied before moving a little further down. At times the adhesive stuck so strongly to the colored backing, it stretched the adhesive out of shape.

I have repaired hundreds of laptops and all in ones, so I understand there are subtleties in a repair, and I found it quite confusing replacing the battery and fingerprint sensor and other necessary parts related to doing that repair with the either inaccurate, outdated, or lack of detail provided (but much needed) in this guide.

Mark Velasco -

If you're like most people and the original back glass (S8) cracked upon removal, and you've ordered and received a plastic replacement from iFixit, remove the adhesive that comes on the replacement plastic back panel, and use the adhesive in this kit. The back panel adhesive in this kit is THICC and seems like it would create a much better seal than what comes preinstalled on the replacement back panel.

johnsgoepel -

Step 15

To seal the phone, align and set the back cover onto the phone frame.
Apply pressure to the phone perimeter with your fingers.
Place some books on top of the back cover for half an hour to help the adhesive bond.
Alternatively, you can use screen vice clamps around the perimeter of your device to set the new adhesive.
