Battery Cable Disconnection

Written By: Kyle Smith

Comments: 3

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

This is a prerequisite-only guide! This guide is part of another procedure and is not meant to be used alone.

Use this guide to disconnect the battery cable on your Samsung Galaxy Note20 Ultra.

Tools

Step 1

Completely power off your phone before you begin disassembly.
Heat an iOpener and apply it to the left side of the rear cover for one minute.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the screen and internal battery are susceptible to heat damage.

Step 2

Apply a suction cup to the heated edge of the rear cover, as close to the edge as possible.
If your back glass is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction cup. If all else fails, you can superglue the suction cup to the broken panel.
Pull up on the suction cup with strong, steady force to create a gap between the rear cover and the frame.
Depending on the age of your phone, this may be difficult. If you are having trouble, apply more heat to the edge and try again.
Insert an opening pick into the gap.
Don't insert the opening pick more than 5 mm into the phone or you risk damaging the internal components.

Great guide! Much appreciated! I've opened the phone twice now due to not gluing enough the first time. I wish iFixit sold a battery for the N20 Ultra. I had to get generics and one was total garbage.

Steven Roberts -

Step 3

Slide the opening pick along the left edge towards the bottom left corner to cut through the adhesive.
Leave the pick inserted in the bottom left corner to prevent the adhesive from re-sealing.

Step 4

While cutting through the adhesive, don't insert the opening pick more than 5 mm into the phone or you risk damaging the internal components.
Repeat the process of heating and cutting the adhesive along the three remaining sides of the rear cover.
You can insert each new opening pick in the gaps created by the opening picks left in each corner.
As you proceed, leave an opening pick in each corner to prevent the adhesive from re-sealing.
Slide an opening pick back and forth around the entire perimeter of the phone to release any missed adhesive. Reheat any stubborn adhesive.

A que temperatura debe calentarse el teléfono para retirar la tapa trasera?

Carlos Lozano -

Step 5

Lift the rear cover straight up to remove it.

Step 6

Use the pointed end of a spudger to pry up and disconnect the wireless charging coil press connector.
Take care to pry only under the edge of the connector to prevent damaging the socket itself and surrounding components.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

Step 7

Use the pointed end of a spudger to pry up and disconnect the white press connector located in the bottom right of the motherboard shield.

can i buy the motherboard shield

Chu Lawrence -

Step 8

Use a Phillips screwdriver to remove the six 4.0 mm screws securing the motherboard shield.
If these screws have not been removed before, they may be difficult to remove as they have threadlocker on their threads.
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

Step 9

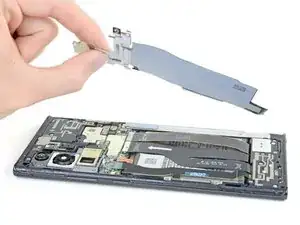

Use a pair of tweezers to lift up the motherboard shield.
Be careful when handling the motherboard shield because its edges are thin and sharp.
Use your fingers to grip the motherboard shield.
