iMac LCD Cleanup

Written By: LLange
  • Comments: 24
iMac LCD Cleanup

Difficulty

Moderate

Steps

5

Time Required

1 hour

Introduction

Removing smoke, shadow, dust behing the LCD panel of 20, 21.5, 24 and 27-inch non-unibody aluminium iMac.

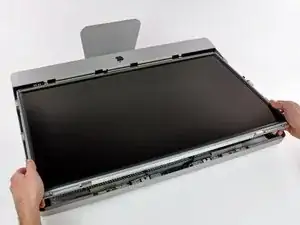

  1. yTYD1rlIr6ScjfaA

  2. Ml1DTpERTXvGDWVh

    • Face the LCD down (be sure to have nothing between the screen and the table) ;

    • Remove 4 screws from the left bracket then 4 screws from the right bracket as displayed (the smallest is at the bottom) ;

  3. MGNFdJR4aguK133G
    MGNFdJR4aguK133G
    OMOHUAbOYE1YeQDY
    bD5DnefvwyEImtlE

    • Use a "Putty Knife" to separate brackets from the LCD panel frame as shown ;

    • Use a "Post-It" to keep the adhesive from the frame ;

    • Continue gently between the bracket and the frame ;

  4. cFs6A4HEACsMMCre
    cFs6A4HEACsMMCre
    qGWW4KNYdWUEEdI6

    • Using the "Putty Knife" make a groove in the shield around the whole frame ;

    • Once done from the bottom center to the edges of the LCD panel unclip the frame (don't touch the top). Clips are located at :

    • Bottom left, center, right ;

    • Left bottom, top ;

    • Right bottom, top ;

    • Lift the frame 90° maximum ;

  5. cFMvrxDKe2THt3jE
    cFMvrxDKe2THt3jE
    IPnARiKJtHWYT4UZ
    nkJ6acB1FcR5jEpN

    • Using gloves and a suction cup gently lift the LCD sheet (no more than 90° failing to do so may bend the LCD and cause image displaying issues);

    • Meticulously clean the inside. Do not use any detergent at most a very lightly humidified microfiber / lint-free cloth ;

    • Do not use an air spray as those might leave marks. Best to get rid of dust is a simple hair dryer going from the top center to the edges ;

    • Reassembly is going back those steps making sure to get rid of your finger-prints ;

Conclusion

To reassemble your device, follow these instructions in reverse order.
