Nvidia Shield Display Assembly Replacement

Written By: Noel Fletcher
  • Comments: 4
Nvidia Shield Display Assembly Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

  1. 515TstpqiW2ul4XU
    515TstpqiW2ul4XU
    6ZCtRhBKEGjaXFwm
    qRv2tyr65XKYplGm

    • Remove the seven 6.4mm T5 Torx screws from the back panel.

    • Use the spudger to separate the front and back panels.

    For the rubber screw covers, it is easiest to push at them at the top, otherwise you have the possibility of damaging the surrounding rubber.

    Any hints at getting the center plastic screw cover out?

    Miles Raymond -

  2. XLsGMpJS3S2bIHMT
    XLsGMpJS3S2bIHMT
    ZDaBJnRhv5UHTUrW

    • The green grill is not screwed in so it can be pulled right out.

  3. WdsIioG56qV3HGme
    WdsIioG56qV3HGme
    lgHBbvQ4dojCEGxC
    ACCwMkV1s5kYuRZZ

    • Remove the six 6.5mm T5 Torx screws.

    • Disconnect the power wires.

    • Peel back the copper tape and disconnect the black and white wires.

  4. uTtxUATxWpQd4xA1

    • Pull the battery apparatus out once all cables are removed.

  5. KGZ2aC1kGNuBFmPx
    KGZ2aC1kGNuBFmPx
    qlPmYVgDTd2da2Lg
    aTnMrspSrrlXXQBZ

    • Cooling is important for electronics, the last thing they want is to overheat.

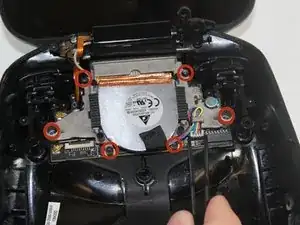

    • Remove the two 7.3mm and four 8.4mm T5 Torx screws and disconnect the power cable.

    • Lift the fan free after the screws and cable are removed.

  6. kCEZPV5tljC5CFDP

    • On the left side from where the display is attached to the back panel there is one 3.8mm T5 Torx screw that needs to be removed.

    • Once removed, the display should be able to be detached.

    There is also a screw holding down the ribbon cable to the main board. which needs to be removed prior to display assembly removal.

    Miles Raymond -

    Any one know size of screw holding down ribbon cable?

    tgl030 -

Conclusion

To reassemble your device, follow these instructions in reverse order.
