Capresso Infinity Timer/On Switch Replacement

Written By: Melayne Spataro
  • Comments: 12
Capresso Infinity Timer/On Switch Replacement

Difficulty

Moderate

Steps

10

Time Required

30 - 45 minutes

Introduction

If you need to replace the timer/on switch, follow this guide. The timer/on switch is essential to how long the coffee beans take to turn into coffee grounds. For this guide, you will need the Torx Security T10 Bit Screwdriver, the extension bit, and a soldering iron.

  1. dIog3igK3rxuV5JF
    dIog3igK3rxuV5JF
    CpcRJFgdyHeWf2RN

    • Twist the top plastic container to the left counterclockwise.

    • Pull upwards to remove.

  2. lV4EVcmQbLyWEZQG
    lV4EVcmQbLyWEZQG
    vxDYfKHmSurmECcG
    GIAKVNWViAvvEWvM

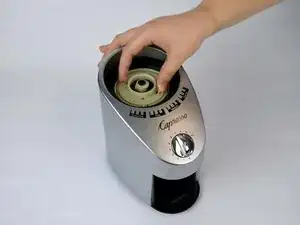

    • Twist the top burr to the left counter clockwise.

    • Pull upwards to remove.

  3. L4sH1QB4FkhsdpOt
    L4sH1QB4FkhsdpOt
    j2MfpWXxBbHINWUO

    • Flip entire device upside down.

    • Remove two rubber coverings on the back of the device.

  4. 5J1To6EQiNYLYg4r
    5J1To6EQiNYLYg4r
    halWFYylkQjUBQ2O

    • Remove four 11.59mm T10 screws.

    • The screws will have small circular washers under them. Put them aside for reassembly.

    T8 Torx screws. The two screws towards the front of the machine are below those circled in red in the picture.

    Canbo -

    My housing is plastic, and was just held on by clips holding the outer part to the base, I gently pried the housing away and lifted the housing off. It’s a Capresso model 560

    panchocole -

    Mine is as well. I tried digging the “rubber washers” out but it was only scratching plastic.

    There are 5 areas you can slide a slim flathead into and gently wiggle to get the casing to slide out from the base. Be firm yet gentle.

    Joseph Hirn -

  5. m1H3IJf1Xh2jVVKt
    m1H3IJf1Xh2jVVKt
    nNeVCToDUROPHPqM
    Phc1TfxGuH2IpgNL

    • Lift the metal outside casing off the black base.

    • Flip the outside casing forward so you have access to the inside of it.

    What about the hard black plastic gasket that fits under the inside lip of the outer metal case?

    Nicole -

    What about the hard black plastic gasket that fits under the inside lip of the outer metal case?

    Nicole -

    It sits between the outer metal case & the black plastic flat ring. Please describe how to reassemble that part.

    Nicole -

  6. 4ME4LvaO4jo3WrTu
    4ME4LvaO4jo3WrTu
    IqIfsCY63aAgKP3P
    NcGltqVnUya3hRWT

    • Remove one 11.59mm T10 screw.

    • Let the green wire fall, or place somewhere so it doesn't get in the way.

    • There will be a small metal retainer and washer, put them aside for reassembly.

    T8 Torx screw.

    Canbo -

    My unit has a plastic case and a two-prong plug, so there is no ground wire.

    michael.g.safonov -

  7. MAbNGvoGZQZMm1hD
    MAbNGvoGZQZMm1hD
    Ry5NEMIki4hdKskV
    KPUwqrpmFDNxZJtX

    • Remove two 11.59mm T10 screws.

  8. RjanRGYUG2A6FVgF
    RjanRGYUG2A6FVgF
    BQXlLZrYKrjVKWb2

    • Remove the time/on switch by pulling upwards.

  9. JAGheMXshXBS3AsS

    • Strip the two wires of their black covering connecting them to the black box.

  10. ET1l2eCxtdkmwtTQ
    ET1l2eCxtdkmwtTQ
    CshRtj1PJHLbbago
    DmMpW3P5lw2Gdvfi

    • Solder the two cords holding in the blue and white wire in the black timer box.

Conclusion

To reassemble your device, follow these instructions in reverse order.
