Introduction

This is a prerequisite-only guide! This guide is part of another procedure and is not meant to be used alone.

  1. XkkI3wBLolqRKxLb
    XkkI3wBLolqRKxLb
    VCOPnhcoYrDqQWpT
    • Use a Phillips screwdriver to remove the 1.8 mm screw securing the battery connector to the logic board.

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

  2. YLO1FA2dJ32XwCVB
    YLO1FA2dJ32XwCVB
    IlnMB3djkLF3bxpw
    LuKZuxBQnPA1aUFB

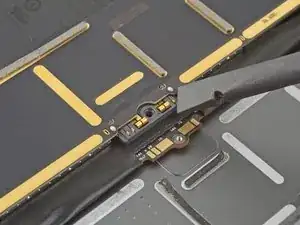

    • These photos show what the battery connector looks like underneath the logic board. Use these photos as a reference while you safely disconnect the battery.

    • Notice that the battery connector has cantilever springs on the logic board that press against the battery contact pads. Since both the logic board and battery are glued down, you'll need to slide something thin and flexible between the contact points to disconnect the battery.

    Achtung! Die kleinen Kontakte sind sehr empfindlich und brechen leicht, wenn sie seitlich gebogen werden.
    Beachte das unbedingt bei Schritt 18!

    Andreas Kröll -

  3. k1P36Wu5bFADkTlL
    k1P36Wu5bFADkTlL
    yKVpF4Ncl5U6fB2n
    jUQ3lWxvaNZYhqrc
    • Cut two 6 mm wide strips from a playing card or cardstock to use as a battery blocker.

    • The strips should be about 4 cm long so you can easily grip them.

  4. kJthdDhcVaWway1p
    kJthdDhcVaWway1p
    F2tVUCnVIDxZItwT
    xXqM2HjvJGLsW1B6
    • Insert the card strips on each side of the battery connector until they stop.

    ACHTUNG: Bewege die Streifen niemals seitwärts! Die kleineren Kontakt können dabei leicht abbrechen und dann hast Du ein größeres Problem.

    Andreas Kröll -

Conclusion

To reassemble your device, follow these instructions in reverse order.
