Azpen A701 General Disassembly Prerequisite Guide Replacement

Written By: Michael
  • Comments: 0
Azpen A701 General Disassembly Prerequisite Guide Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

This guide demonstrates how to remove the back panel and open the device for repairs and replacements.

  1. HVqX2Q5nmUjrcBEa

    • Remove the two 2cm screws on the bottom using the PH0 Phillips head screw driver.

  2. Qfh5iVcq6QbLdQEI
    Qfh5iVcq6QbLdQEI
    AfEUSfn36ugSyy2U

    • Pry open back piece with plastic spudger.

    • Remove the back piece of the device.

    • The back panel may be difficult to pry off, use gentle force.

  3. QHp1GtnImOcguQRs

    • Disconnect speaker (which is attached by black and red wires) from back piece using plastic spudger.

  4. LTCOnSeHHD2iRykB

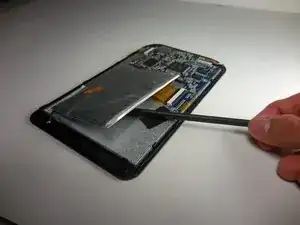

    • Gently pry the battery off of the device with the plastic spudger.

    • There is a large amount of glue holding the battery to the device.

    • Do not puncture the battery with the plastic spudger.

Conclusion

To reassemble your device, follow these instructions in reverse order.
