iPhone 12 Pro

Check out our free iPhone 12 Pro teardown wallpapers! You can choose from iFixit or Creative Electron (X-ray) versions. Also have a look at some of our other wallpaper posts.

Starting at the same price as last year’s iPhone 11 Pro, Apple’s new flagship sports a completely new design with double the starting storage capacity. The entire lineup gains a flat stainless steel design with smaller bezels, 5G, and a magnetic “MagSafe” charging system. The iPhone 12 Pro also gets a new, larger 6.1-inch “Super Retina XDR” OLED display—compared to the iPhone 11 Pro’s 5.8-inch display. It also ships with a Lightning to USB-C cable—but no power adapter or EarPods (a first for Apple). In addition to updated Silver and Gold finishes, new “Graphite” and “Pacific Blue” color options are available.

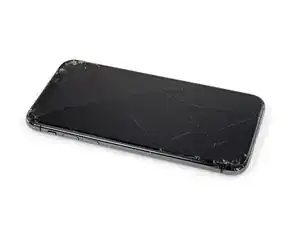

The most often replaced iPhone 12 Pro parts include the battery, screen, speakers, and lenses.

You can identify the iPhone 12 Pro by finding one of the model numbers either on the inner edge of the SIM card tray or within the phone's Settings app:

• A2341
• A2406
• A2408
• A2407

You can find the model number through the phone's UI by going to the Settings app and navigating to General > About. Tap on the number listed in the Model Number section and it should change to a format that looks like the numbers above.

The iPhone 12 Pro features a 6.1 in (diagonal) flat glass screen, thin black bezels, and a notch at the top of the screen to accommodate a speaker and selfie camera. The back cover is glass and the edge frame is made from flat stainless steel.

Volume controls and the SIM tray can be found on the left edge while the power button is situated on the right. A rectangular camera "bump" containing three cameras in a triagonal layout protrudes slightly from the back case. This model has no home button.

The iPhone 12 Pro can be differentiated from the iPhone 12 Pro Max by the 6.1 in screen (relative to the 6.7 in screen on the Pro Max model).

Announce date: October 13, 2020

Operating System: iOS 14

Display:

• 6.1-inch “Super Retina XDR” OLED display
• Ceramic Shield glass technology
• Haptic Touch
• 2532 × 1170 pixel resolution (460 ppi)
• 2,000,000:1 contrast ratio (typical)
• True Tone
• P3 wide color gamut
• 800 nits max brightness; 1200 nits max HDR (typical)
• Fingerprint-resistant oleophobic coating

Triple primary camera:

• True Tone flash with Slow Sync
• LiDAR scanner
• Apple ProRAW
• 4K 10-bit HDR video recording with Dolby Vision HDR, up to 60 fps
• 4x optical zoom range
• Wide-angle module
  • 12 MP
  • ƒ/1.6 aperture
  • Optical image stabilization (OIS)
  • Autofocus with 100% Focus Pixels
  • Seven-element lens
• Ultra-wide module (120° field of view, 2x optical zoom out)
  • 12 MP
  • ƒ/2.4 aperture
  • Five-element lens
• Telephoto module (2x optical zoom in)
  • 12 MP
  • ƒ/2.0 aperture
  • Optical image stabilization (OIS)
  • Six-element lens
  • 52-mm equivalent

TrueDepth selfie camera with Face ID:

• 12 MP
• ƒ/2.2 aperture
• HDR video recording with Dolby Vision, up to 30 fps
• 4K video recording, up to 60 fps
• Retina Flash

Processor: A14 Bionic with Neural Engine

• 5 nm process
• 6-core CPU
• 4-core GPU

RAM: 6 GB

Storage: 128, 256, or 512 GB

Battery: 2815 mAh

• Up to 17 hours of video playback
• Up to 65 hours of audio playback
• MagSafe wireless charging, up to 15W
• Qi wireless charging, up to 7.5W
• Fast-charge capable

Sensors:

• Face ID
• LiDAR scanner
• Barometer
• Three-axis gyro
• Accelerometer
• Proximity sensor
• Ambient light sensor

Wireless Connectivity:

• 802.11ax Wi‑Fi 6 with 2x2 MIMO
• 5G (sub‑6 GHz; mmWave only on bands n260 and n261 / US models A2172 and A2176)
• Gigabit LTE with 4x4 MIMO and LAA
• Bluetooth 5.0
• Apple-designed U1 Ultra Wideband chip for spatial awareness
• NFC

Dimensions: 5.78 × 2.82 × 0.29 in (146.7 × 71.5 × 7.4 mm)

Weight: 187 g (6.60 oz), 189 g (6.66 oz) mmWave model

Water Resistance: IP68

Colors: Silver, Graphite, Gold, Pacific Blue
